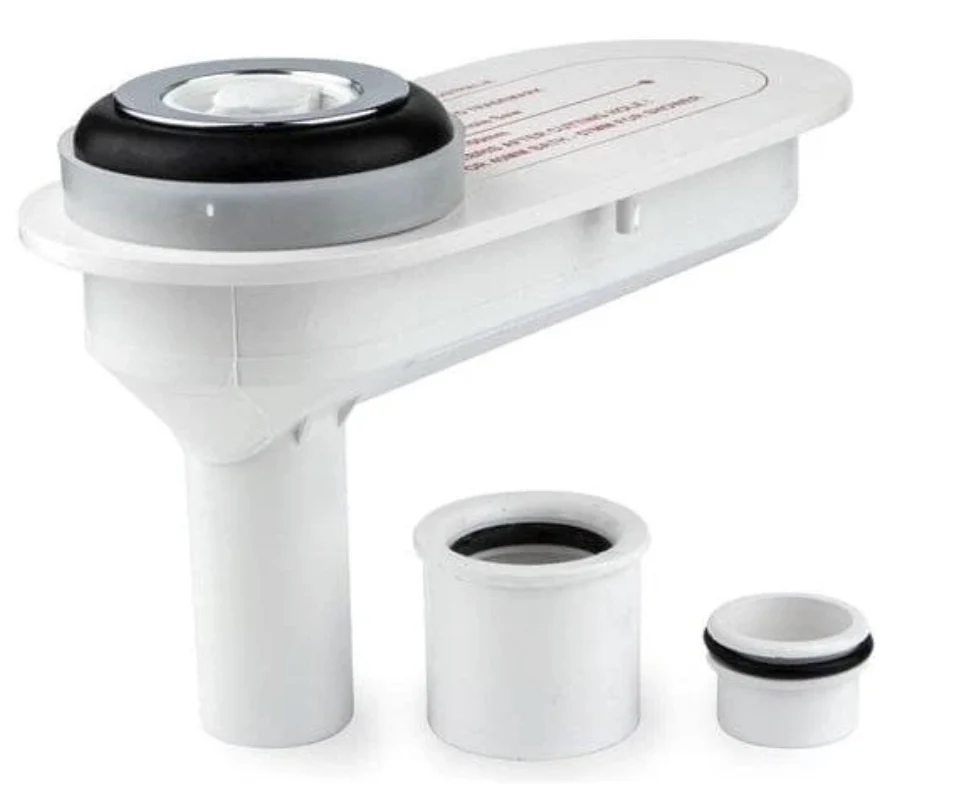

Bath and shower waste outlets rarely land exactly where the drain is — especially on renovations, or when a bath's been swapped for a different model. The Plumbdinger is a flexible offset fitting built to solve exactly that, without cutting into the slab or reworking the drain run.

It rotates a full 360 degrees, offsets up to 150mm, and adjusts height by up to 50mm, so it absorbs misalignment that would otherwise mean re-plumbing or a difficult re-core. This 40mm chrome kit suits 40mm bath waste connections (50mm bath and 80mm shower versions are also available). Code 4040.

Key Features

Corrects bath and shower waste misalignment without breaking into the slab
360-degree rotation for precise final alignment
Up to 150mm horizontal offset
Up to 50mm height adjustment
Suits 40mm waste connections — 50mm and 80mm versions also available
Chrome finish, suitable for new builds and renovations

Specifications

Spec	Detail
Code	4040
Size	40mm
Finish	Chrome
Rotation	360°
Max horizontal offset	150mm
Max height adjustment	50mm
Use	Bath/shower waste alignment
Also available	50mm (bath), 80mm (shower)

Bath Accessories

Plumbdinger Bath & Shower Waste Alignment Kit - 40mm Chrome | Code 4040
