350mm Straight Grab Rail
Specification
| Material | #304 Stainless Steel - 32mmĆ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix - 78mmĆ Mount |
| Dimensions | Ā 350mm C to C |

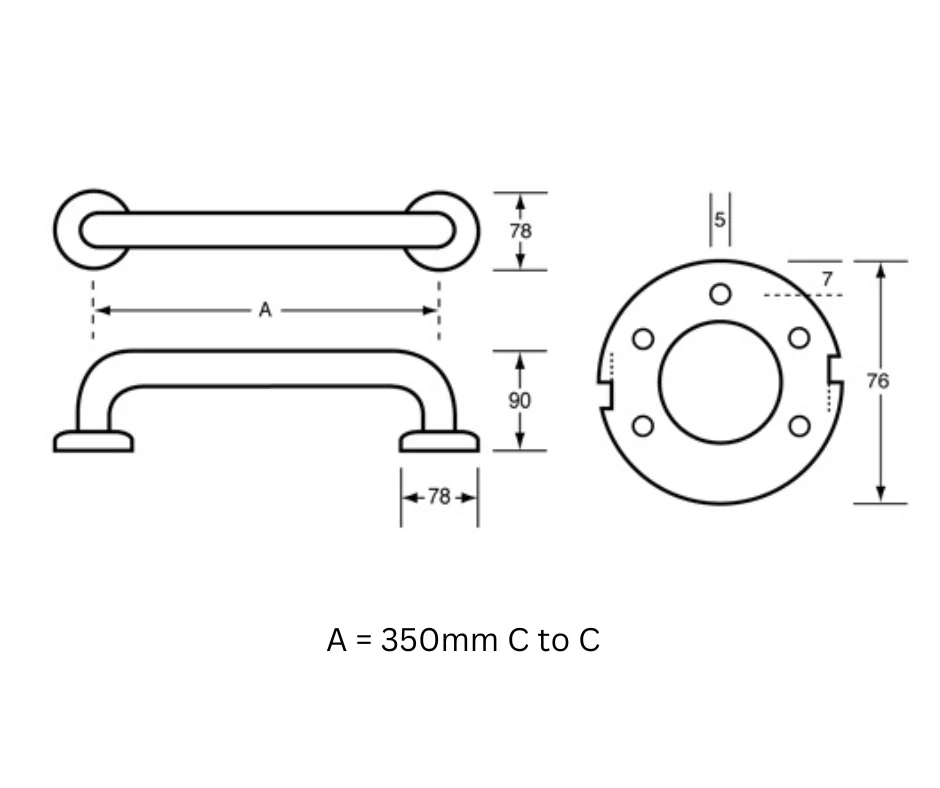

| Ā | Please Note: A Indicated On The Line Drawings Refers To The Length, Please See Below And Specify Accordingly |
| Also Available |
ML327Ā - A= 300mm C to C ML329Ā - A= 400mm C to C ML330Ā - A= 450mm C to C ML331Ā - A= 600mm C to C ML332Ā - A= 750mm C to C ML338Ā - A = 800mm C to C ML333Ā - A= 900mm C to C ML334Ā - A= 1000mm C to C ML335Ā - A= 1200mm C to C ML336Ā - A= 1500mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Original: $34.94
-65%$34.94
$12.23Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification
| Material | #304 Stainless Steel - 32mmĆ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix - 78mmĆ Mount |
| Dimensions | Ā 350mm C to C |
| Ā | Please Note: A Indicated On The Line Drawings Refers To The Length, Please See Below And Specify Accordingly |
| Also Available |
ML327Ā - A= 300mm C to C ML329Ā - A= 400mm C to C ML330Ā - A= 450mm C to C ML331Ā - A= 600mm C to C ML332Ā - A= 750mm C to C ML338Ā - A = 800mm C to C ML333Ā - A= 900mm C to C ML334Ā - A= 1000mm C to C ML335Ā - A= 1200mm C to C ML336Ā - A= 1500mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
