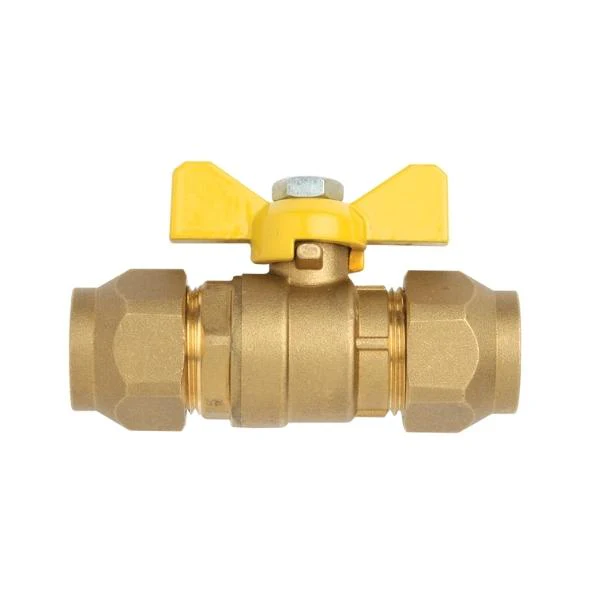

T-Handle (butterfly) Flared W/nut
Bromic’s range of gas flare x flare ball valves are manufactured with high quality brass and feature a P.T.F.E. stem sealing system, providing extensive durability with a maximum operating pressure of 1050kPa at nominal temperatures.
Features
High quality brass construction with conical P.T.F.E stem sealing system
Working temperature range between -20C and +120C
Maximum operating pressure at nominal temperatures of 1050kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications
Specifications

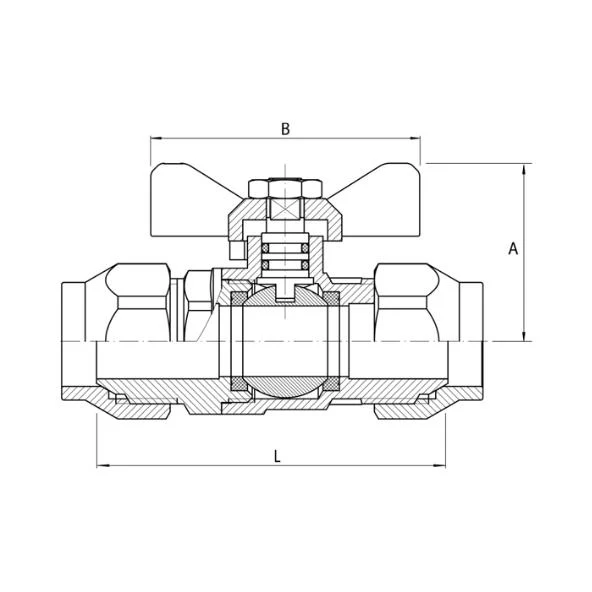

| Product Number | 1210420 |
| Dimension A (mm) | 39 |
| Dimension B (mm) | 57 |
| Dimension C (mm) | 69.5 |
| Pressure Rating (kPa) | 1050kPa |
| AGA Approval Number | 7423 |
| Thread Size | 3/8” |
| Thread Type | BSP |
| Brands | Bromic |
| Material | Brass |
| Handle Type | T-handle (Butterfly) |
| Inlet Connection (Thread Size) | 3/8" |
| Inlet Connection (Thread Type) | BSP |
Original: $17.90
-65%$17.90
$6.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Bromic’s range of gas flare x flare ball valves are manufactured with high quality brass and feature a P.T.F.E. stem sealing system, providing extensive durability with a maximum operating pressure of 1050kPa at nominal temperatures.
Features
High quality brass construction with conical P.T.F.E stem sealing system
Working temperature range between -20C and +120C
Maximum operating pressure at nominal temperatures of 1050kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications
Specifications
| Product Number | 1210420 |
| Dimension A (mm) | 39 |
| Dimension B (mm) | 57 |
| Dimension C (mm) | 69.5 |
| Pressure Rating (kPa) | 1050kPa |
| AGA Approval Number | 7423 |
| Thread Size | 3/8” |
| Thread Type | BSP |
| Brands | Bromic |
| Material | Brass |
| Handle Type | T-handle (Butterfly) |
| Inlet Connection (Thread Size) | 3/8" |
| Inlet Connection (Thread Type) | BSP |
